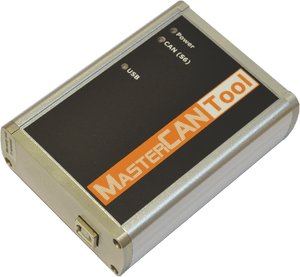

MasterCAN Tool
MasterCAN Tool is CAN bus (SAE J1939) simulator-analyzer.
MasterCAN Tool is designed to create, debug and test equipment and software integrated in CAN bus. It is indispensable for developers and quality assurance specialists.
MasterCAN Tool diagnosis individual malfunctions of electronic components by sending into CAN bus custom messages on behalf of any vehicle electronic unit.
MasterCAN Tool also reads data from S6 bus. All the data, collected from fuel sensors and GPS/GLONASS tracking devices, is transmitted as FMS messages.
Purpose
- CAN bus reading.
- CAN bus simulation.
- Malfunctions diagnostics of devices connected to CAN bus.
- Sending standard and custom messages into CAN bus.
- Receiving messages from CAN bus.
Features
- Equipment diagnostic by connection to CAN bus and malfunctions identification.
- No setup needed.
- Connection to the bus with contactless reader CANCrocodile or with connectors.

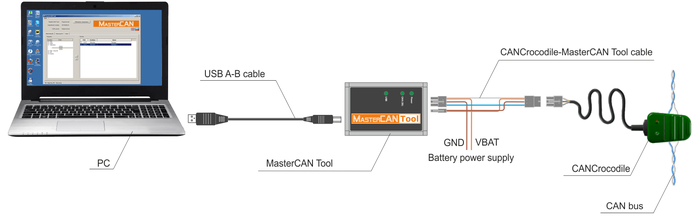

Connection to CAN bus with CANCrocodile contactless reader

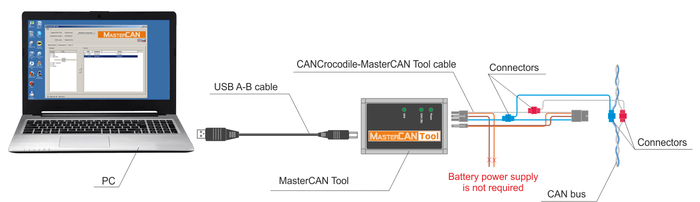

Connection to CAN bus with connectors
- Power supply from vehicle battery or USB connection.
- Integrated with S6 telematics bus.

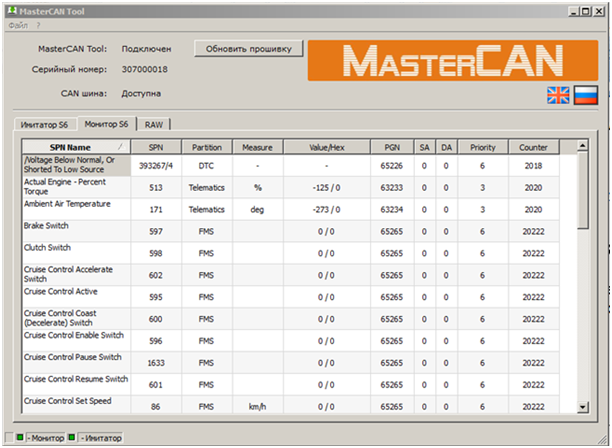

SPN value table
Warranty
5 years from the date of manufacturing.
FIELDS OF APPLICATION
Our equipment can be used on a wide range of vehicles – from trucks and buses to heavy machinery and stationary objects
