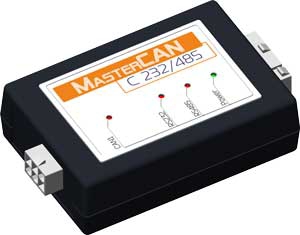

MasterCAN C 232/485. Vehicle data interface.
- CAN bus data reading.
- Data processing and transformation for vehicle monitoring systems.
- Generation and sending reports to RS-232 and RS-485 output interfaces (with the help of ASCII or Modbus protocols).
- Compatible with S6 telematics interface, receiving data from up to 8 DUT-E CAN fuel level sensors, calculation and provision of data on the total fuel volume in several fuel tanks using DUT-E COM protocol.
Application
MasterCAN C 232/485 is used in fleet telematics systems to receive data on parameters of the vehicle operation from the standard CAN bus. It is suitable for any type of vehicles (trucks, buses, agricultural machinery) where CAN is used.
To receive data tracking device with RS-232 or RS-485 input interfaces can be used.
There are different ways for MasterCAN C 232/485 connection to make it work as part of the telematics system. Main of them:

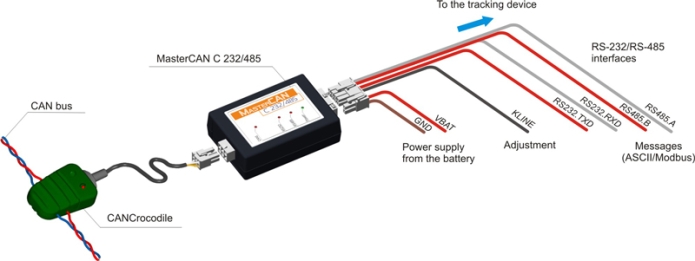

Way 1. CAN Bus data receiving
MasterCAN C 232/485 connection to CAN bus can be made using contactless reader CANCrocodile (recommended) or by direct contact. In RS-232 and RS-485 text messages are send with one second interval (ASCII protocol) or in request-response mode (Modbus protocol).

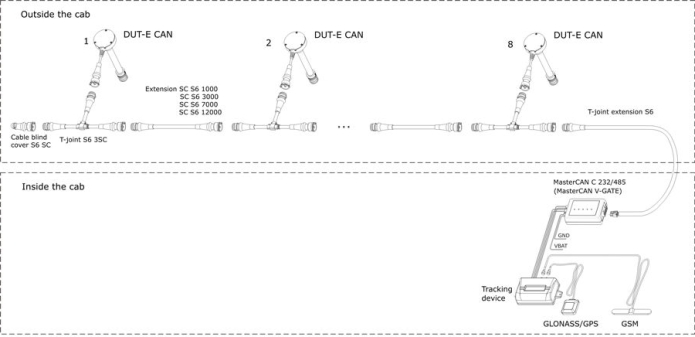

Way 2. Summation of data from several DUT-E CAN fuel level sensors
MasterCAN C 232/485 can be used to summarize data on fuel volume from several tanks. It is possible to connect up to 8 DUT-E CAN.
Warranty
5 years from the date of manufacturing.
