CAN bus converters
Vehicle data interface MasterCAN
Full range of vehicle operational data in a friendly format. Integration of automobile CAN bus into transport telematic systems
Modern automobile has dozens compound electronic on-board devices. Increasingly, CAN bus is used for data exchange between devices. The purpose of MasterCAN products is integration of automobile CAN bus and elements of transport telematics systems. MasterCAN devices are intended to put the operation of telematics terminals with CAN input to a qualitatively new level and allow to:
- safe data reading from CAN bus;
- CAN bus organization with maximum needed dataset;
- smart combining of several CAN buses;
- signal reception of analog sensors, their digital conversion and transmitting to the CAN bus;
- identification of the necessary information inside the CAN bus and its transmitting over interfaces that are available in telematic terminal (analog, RS-232, RS-485).
Transport tracking and fuel consumption monitoring systems are designed for effective vehicle fleet management. Delivery of reliable information about vehicles and drivers means receiving, processing and analyzing of hundreds of parameters on the automobile operation. Nowadays there are great number of car brands and models used by transport service thats why signals capture from sensors and systems is the most difficult task for integrators of monitoring solutions.
CAN bus has arrays of information with great value for the transport telematic systems. Data about vehicle technical status received and processed by the MasterCAN devices can help managers to optimize costs and increase efficiency of the vehicle fleet.
MasterCAN models selection

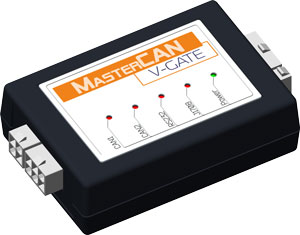

MasterCAN V-GATE is used to obtain vehicle operation parameters from CAN (SAE J1939/71) and J1708 (SAE J1587) buses, convert data, transmit FMS messages and generated special Telematic messages to CAN j1939/S6 Telematic interface, as well as to transmit messages to the RS-232 interface (ASCII/Modbus RTU/DUT-E COM). Suitable for any type of vehicles (trucks, buses, agricultural vehicles) that use J1708 and/or CAN busses.
MasterCAN C 232/485 is used in fleet telematics systems to obtain data on vehicle operation parameters from the standard CAN bus, convert FMS messages to RS-232 and RS-485 interfaces (ASCII/Modbus RTU/DUT-E COM). Suitable for any type of vehicle (trucks, buses, agricultural machinery) that uses CAN bus and data tracking devices with RS-232 or RS-485 input.

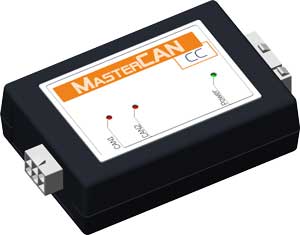

MasterCAN CC is used in fleet telematics systems to receive data on vehicle operation parameters from one or several standard CAN buses, transmit FMS messages and generated special telematic messages to the CAN j1939/S6 telematic interface. It is suitable for any type of vehicles (trucks, buses, agricultural machinery) where CAN is used.

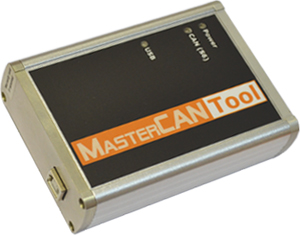

MasterCAN Tool is CAN bus (SAE J1939) imitator-analyzer used to monitor, emulate, simulate, data analyze (PGN) vehicle CAN bus or CAN J1939/S6 telematics interface. This is a powerful hardware and software tool for professionals in the field of design and maintenance of on-board equipment and software for telematics systems.

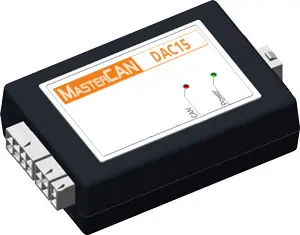

MasterCAN DAC15 converts digital data (SPN) of vehicle CAN (J1939) bus into various types of analog signals as well as converts analog signals of vehicle sensors into digital parameters value (SPN) of CAN (J1939) bus and transfers data to logging devices having correspondent inputs.
(CAN j1939/S6 configurable digital interface;
One adjustable signal input for analog voltage/frequency;
Five adjustable signal outputs: analog voltage/frequency/pulse; current; discrete (2 pcs.); resistive)

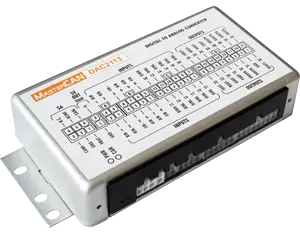

MasterCAN DAC2113
Advanced digital/analog Converter
DAC2113 is the converter of signals (digital to analog and analog to digital) with extended functionality for complex mobile and fixed installations (locomotives, track machines, river and sea vessels, farming equipment, municipal and special vehicles, industrial automation systems etc.)
A big variety of analog signal inputs/outputs, the presence of CAN j1939/S6 interface allows you to transferring data from a large number of analog sensors to one CAN input of a GPS tracker or telematics unit.

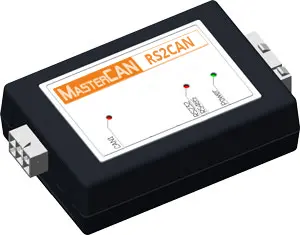

MasterCAN RS2CAN / CAN2RS
CAN to RS / RS to CAN Converters
CAN2RS is used to convert messages from CAN (j1939/S6) interface into RS-485 (Modbus RTU) interface.
RS2CAN is used to convert messages from RS-232 / RS-485 (Modbus RTU) interface into CAN (j1939/S6) interface.
Configuration of up to 100 slots of input/output data (selection from 10 800+ Parameters of S6 Database).
MasterCAN P2CAN
Pulse to CAN data Converter
MasterCAN P2CAN is designed for conversion of pulse output signals of measuring devices for fuel, water, gas, electricity, etc. consumption accounting into digital data (SPN) of CAN j1939/S6 Telematics interface.
FIELDS OF APPLICATION
Our equipment can be used on a wide range of vehicles – from trucks and buses to heavy machinery and stationary objects
