CAN J1939 bus display

Visual parameter monitoring from CANbus and additional sensors

MasterCAN Display 35 is a configurable onboard device for road and off-highway vehicles, water transport, rail machines and stationary assets, allowing visual performance monitoring based on over 10,000 possible machinery operation parameters.

On-board monitoring

Monitored parameters

total fuel volume;

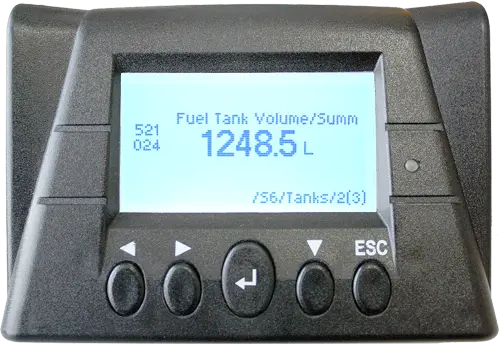

fuel volume of each tank (up to 16 sensors);

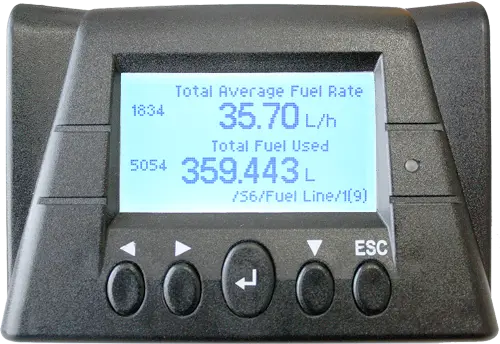

fuel consumption (up to 16 flow meters);

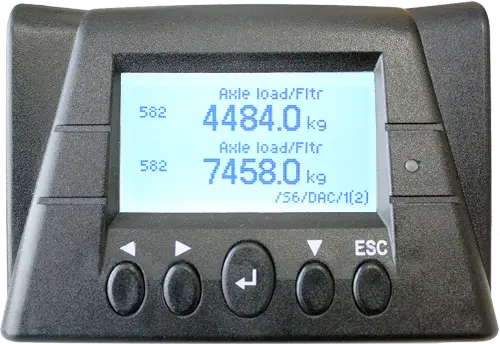

axle load (up to 10 sensors);

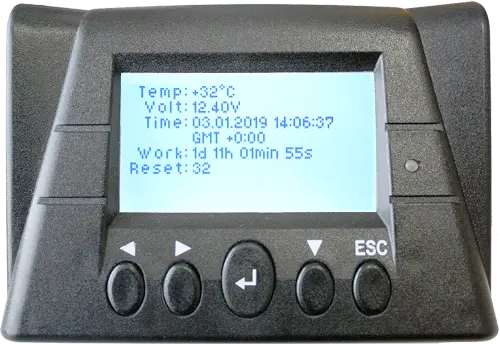

engine operation time;
on-board power supply voltage;
time and date;
other data from up to 42 senders with analog and digital outputs.

Features

Conformity with European and national automotive standards and directives
Display 35 can detect over 10,000 possible machinery operation parameters. A user can select 402 of them to be shown on several grouped screens.
Data transmission of analog/frequency signals, SAE j1939, ISOBUS and NMEA 2000 (special firmware is needed) protocols
Compatibility with all types of CAN interfaced Technoton telematics sensors
Compatibility with S6 telematics bus cable system
No setup needed
LCD backlight

Technical specifications

Parameter	Value
Digital interface	CAN J1939/S6
Physical signal inputs	Analog/Frequency
Power supply range, V	9 – 45
Current consumptionat power supply voltage, mA, max	100/50
Ambient operation temperature range, °F	14 … 140
Ingress protection rating	IP40
Overall dimensions, mm, max	138.5×98.5×56
Weight, kg, max	0.25
LCD display	128×64, monochrome
