CANCrocoLITE

CANCrocoLITE is a device for Telematics systems used for data reading from on-board CAN bus of personal cars and light commercial vehicles without interference in integrity of electronic circuits.

CANCrocoLITE generates output signal that fully corresponds to data set of the connected vehicle bus.

Application – CANCrocoLITE is used within Telematics system to obtain available data on fuel consumption, engine operation modes, status of sensors and gauges, presence of malfunctions.

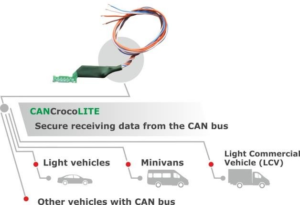

CANCrocoLITE can be installed on all types of personal cars, vans and light commercial vehicles equipped with CAN bus. CANCrocoLITE is compatible with all types of Telematics terminals that have a port for CAN bus connection.

……………………………………………………………………………………………………………………………………………………………………………………………………………………………………..

CANCrocoLITE Features

Contactless data obtaining through wires insulation without interfering into its integrity
Zero impact on the electronic and electrical equipment of the vehicle

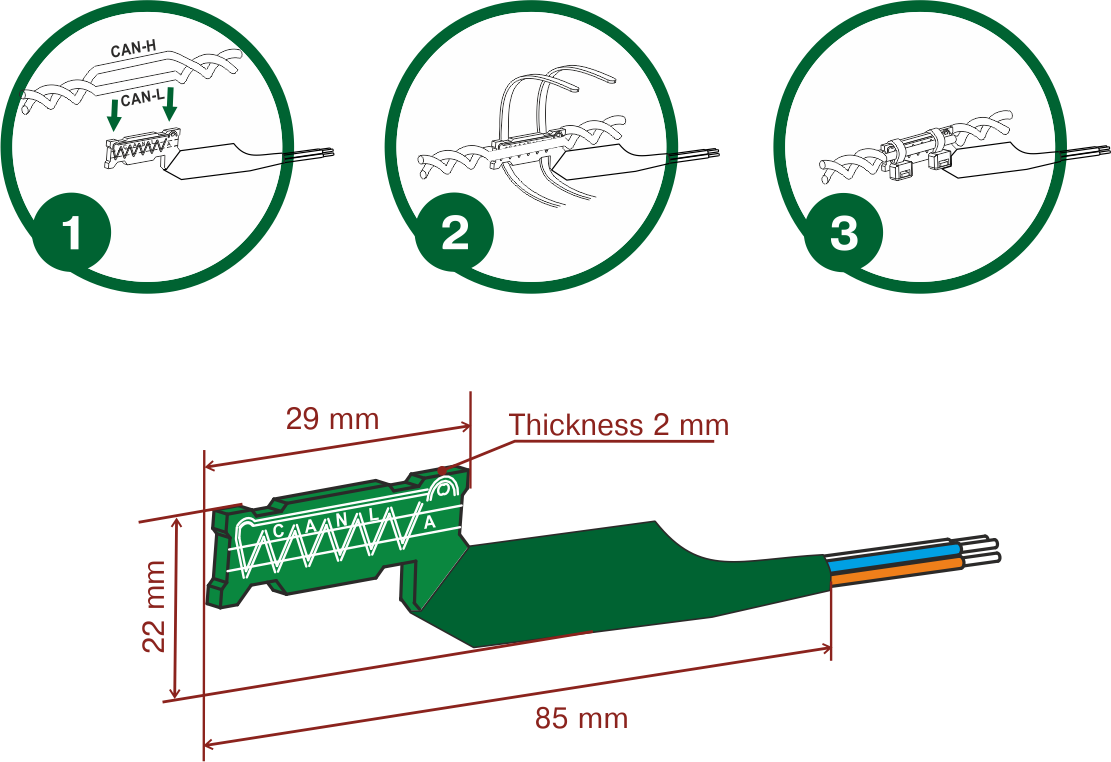

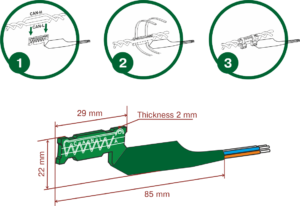

Compact open-frame design allows handy connection to the wires of CAN bus even in the most hard-to-reach places of a car
Reliable protection of car’s electronic circuits against exposures via CAN interface, e.g. active requests sent from connected telematics unit
Safe data integration from one or several informational vehicle buses to Telematics interface *
Powered from vehicle’s onboard power supply — does not require an additional equipment (power supply unit)
Protected against reverse polarity
Easy to install and operate
No need in setting-up
Competitive price
* when CANCrocoLITE is used together with MasterCAN vehicle data interface

CANCrocoLITE Specification

Acceptable message loss, %, not more than	1 %
Nominal supply voltage for versions U12/24, V	12 or 24 V
Current consumption at supply voltage 12 V/ 24 V, mA, not more	50 mA
Power supply voltage range for versions U12/24, V	from 9 to 36
Temperature range ° C	from -40 to +85
Weight, kg, not more	0,05
Compatibility	SAE J1939, CAN Open, DeviceNet, NMEA 2000

CANCrocoLITE Application and Usage

CANCrocoLITE output signal is received by tracking device that collects, records, stores and transfers received signals to vehicle tracking system server. Software installed on the server processes and analyzes received data and then compiling reports that contain information on fuel consumption, engine operating modes, sensors status and vehicle malfunctions.

Data monitoring of personal cars

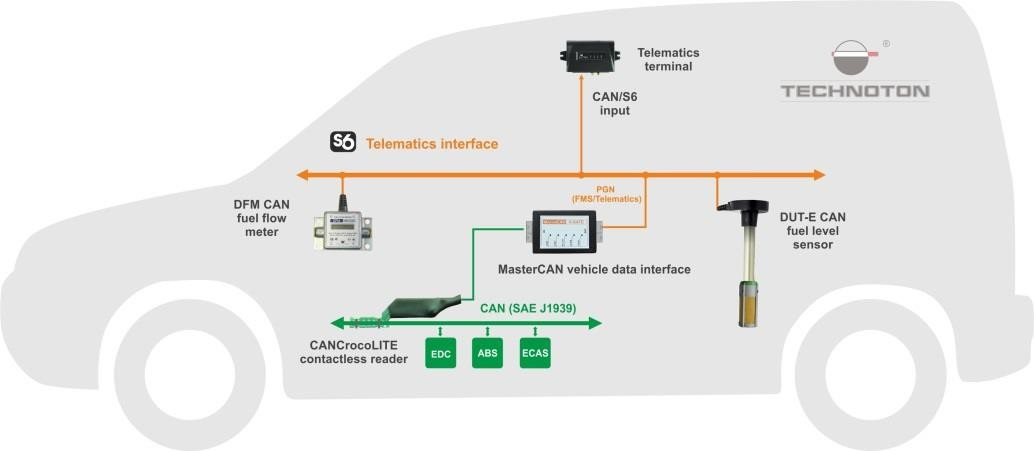

While used together with MasterCAN vehicle data interfaces,CANCrocoLITE becomes a ready-made solution for safe data integration from automotive CAN bus into S6 Telematics interface. It allows to monitor over 100 operation parameters of Vehicle via just one CAN-port of telematics terminal.

CANCrocoLITE

Warranty

Warranty period for CANCrocoLITE is 4 years from the date of manufacture.
